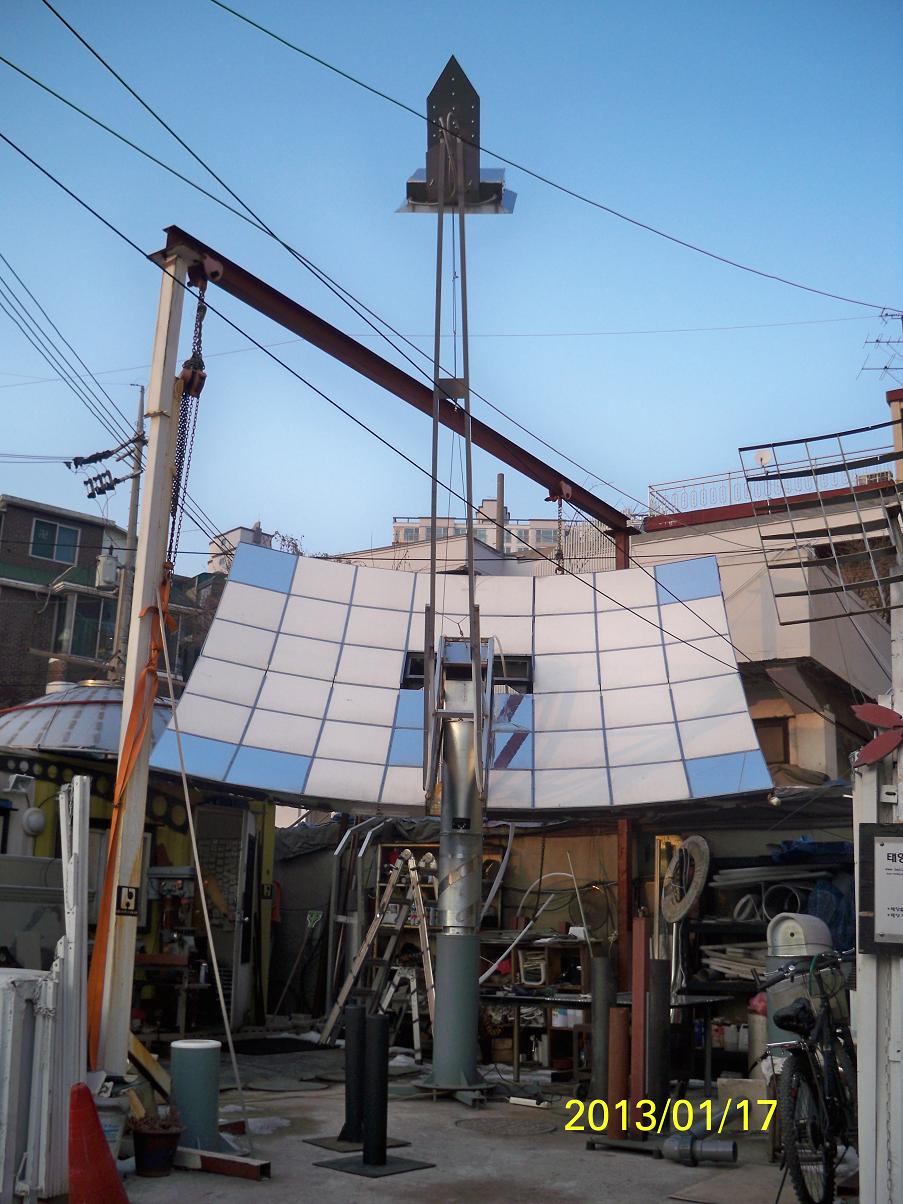

Hybrid CPV 12 square meters flat panel parabolic concentrated 44 suns primary to second concentration of 9 time makes total 400 suns in 500 x 500 mm surface.
 500 x 500 mm Receiver produce 4 Kw

 Primary reflector 44 suns

Focal length 3500 mm

 Adjustable focal point and length
Liquid cooling method

 Precision Tracker to meets 1.5-degree acceptance angle

Still under cosmetic finish out...

More strength with wire rope

Receiver with a glass cover to prevent  air convection

 Waiting to remove hoist

More detail contact eychung1888@yahoo.co.kr
